YTX-1-c radio dial type cable communication system

update£º2015-03-20 23:02      Click£ºtimes
  • brand
  • model
  • describe

    YTX - 1 c type communication system by the ordinary telephone, explosion-proof telephone, NEC - SL10016 program-controlled switches, demux/multi-channel audio power amplifier and explosion-proof speaker, such as system adopts double audio

introduce
"YTX - 1 c type communication system" by the ordinary telephone, explosion-proof telephone, NEC - SL10016 program-controlled switches, demux/multi-channel audio power amplifier and explosion-proof speaker, such as system adopts double audio dial-up DTMF method calls."YTX - 1 c type communication system" the system has a simple to use, easy installation and maintenance, effect is good, call amplification big power, high cost performance, wide application, etc.Apply to the space is large, noisy environment, post scattered place, production scheduling and communications.
Using the environment
(environment temperature of 30 ¡æ ~ + 50 ¡æ
(relative humidity is 95 or less
(power supply voltage: AC220V plus or minus 10%, 50 hz
(atmospheric pressure: 80 ~ 110 kpa
(mainly used in production scheduling and communications
The main features
Filled by switches can be formed into the cable network system.
Cardiac communication distance can be more than the total length of 5 km.
Derive any words stand calling can be directly through the loudspeakers propaganda, implementation, such as the scene scheduling purposes.
Is left for this system can be through the switch interface connected to other SPC exchange.


Main features:
Explosion-proof level such as: Exde (ib) ib ¢ò BT6
Protection grade: IP66
Supply of electricity: 24 to 60 v DC
The ringing of electricity: AC60V 25 hz
Atmospheric pressure force: 80-110 kpa
Frequency response: 300 ~ 3400 hz
Installation dimensions: 270 * 130 * 350 mm
Installation method: wall-mountable or a type

Multichannel audio distributor/multichannel amplifier: provide communications systems and audio power amplifier.


Main features:
Power supply voltage: AC 220 v + 10%
The machine power: 300 w
Installation dimensions: 440 * 420 * 200 mm

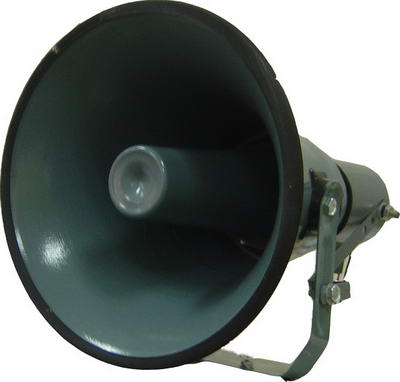

Explosion-proof speaker: workplace amplification effect, has the characteristics of the safe type.

Main features:
Explosion-proof marks: Exd ¢ò CT6
Protection grade: IP65
Output power: 60 w
Dimension: 260 * 260 * 400 mm

Explosion-proof flash: in large noise in the workplace have flash to prompt action, has the characteristics of the safe type.


Main features:
Explosion-proof marks: Exd ¢ò CT6
Output power: 0.5 W
Dimensions: 100 x 65 x 40 mm
